New: intelligent battery monitoring to prevent unwanted switching
Some battery combiners will disconnect a battery in case of a short but high amperage load. A battery combiner
also may fail to connect a large but discharged battery bank because the DC voltage immediately drops below
the disengage value once the batteries are connected.

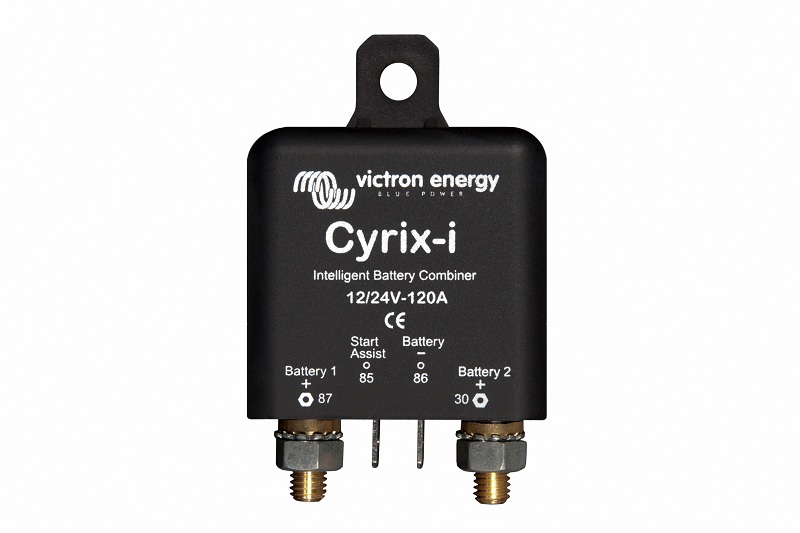

The software of the Cyrix-i does more than simply connect and disconnect based on battery voltage and with a
fixed time delay. The Cyrix-i looks at the general trend (voltage increasing or decreasing) and reverses a previous
action only if the trend has reversed during a certain period of time. The time delay depends on the voltage
deviation from the trend.
definition: 46 x 46 x 80
0,11 kg
